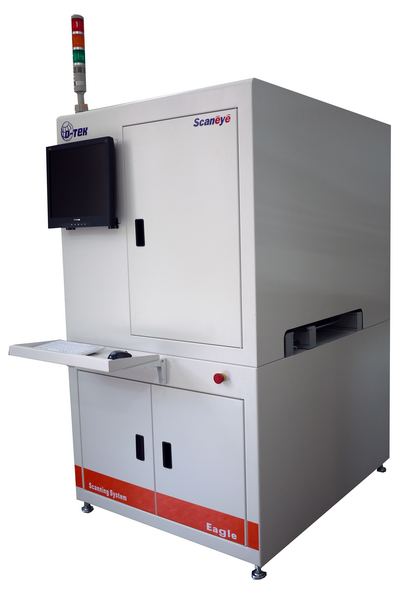

Full Vision BGA Ball Printing Paste Detector
Scaneye Eagle
● Easy detection function:

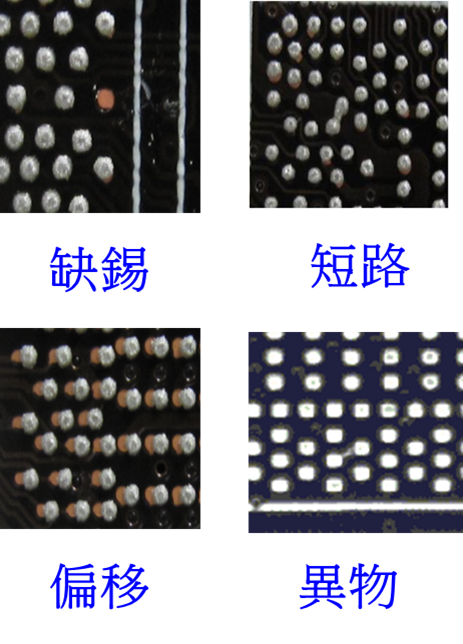

● Mainly for BGA Ball detection whether there is tin, short circuit, offset, foreign body
● Mainly for BGA Ball detection whether there is tin, short circuit, offset, foreign body
Machine size: 1000mm (length) × 1300mm (depth) × 1800mm (high)
Substrate maximum size: 460mm (length) × 510mm (deep)
BGA Ball Size: 0.3mm-0.5mm
Visual FOV: 110mmX80mm
Detect 2 position times: <12 sec
Check items: lack of tin, short circuit, offset, foreign body
Substrate maximum size: 460mm (length) × 510mm (deep)
BGA Ball Size: 0.3mm-0.5mm
Visual FOV: 110mmX80mm
Detect 2 position times: <12 sec
Check items: lack of tin, short circuit, offset, foreign body
