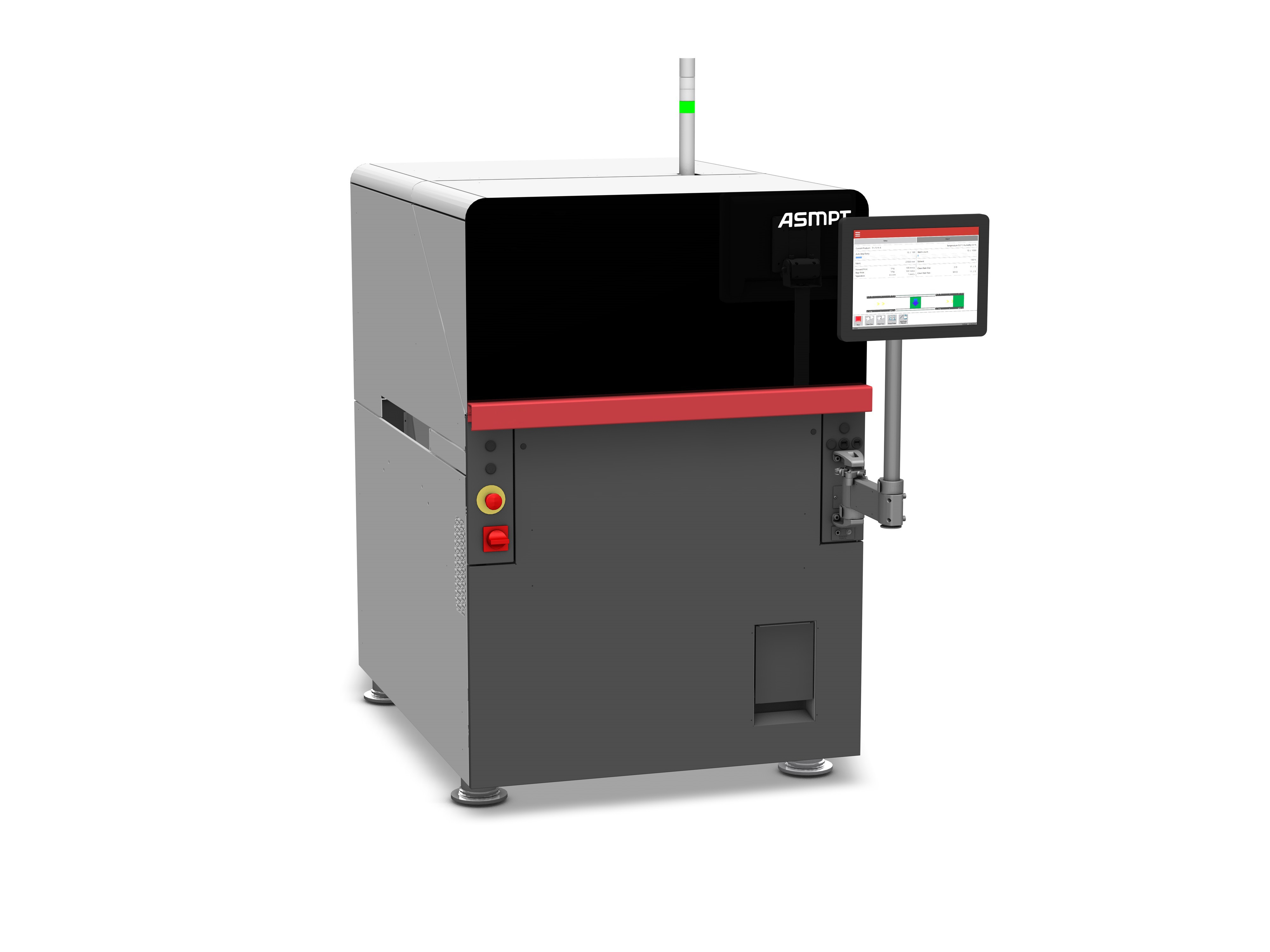

ASMPT DEK TQ series printing platform
ASMPT DEK TQ series printing platform
● Maximum printing quality，New clamping process for off-belt printing, an innovative printhead and drive, and full-area pneumatic stencil clamping。
● Maximum precision，Wet-print accuracy of up to ±17.0 microns @ 2 Cpk Paste printing for 0201m components。
● Maximum throughput，Core cycle time of 5 seconds (DEK TQ) and 6.5 seconds (DEK TQ L)。
● Fast 3-stage transport，Linear drives, innovative clamping systems, off-belt printing, ASMPT NuMotion controller。
● Up to 8 hours without assists，Understencil cleaning system with 22-meter fabric roll and 7-liter cleaning fluid supply, automatic paste management, and automatic Smart Pin Support。
● Best floorspace performance，Footprint of only 1.3 square meters (DEK TQ) and 1.95 square meters (DEK TQ L)。

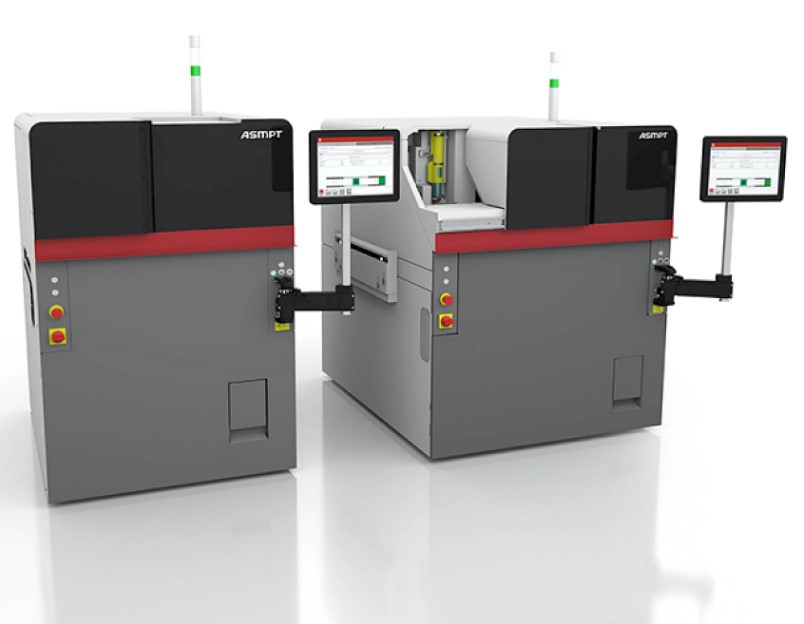

● Back-to-back，The perfect solution for dual-conveyor lines。
● Maximum precision，Wet-print accuracy of up to ±17.0 microns @ 2 Cpk Paste printing for 0201m components。
● Maximum throughput，Core cycle time of 5 seconds (DEK TQ) and 6.5 seconds (DEK TQ L)。
● Fast 3-stage transport，Linear drives, innovative clamping systems, off-belt printing, ASMPT NuMotion controller。
● Up to 8 hours without assists，Understencil cleaning system with 22-meter fabric roll and 7-liter cleaning fluid supply, automatic paste management, and automatic Smart Pin Support。
● Best floorspace performance，Footprint of only 1.3 square meters (DEK TQ) and 1.95 square meters (DEK TQ L)。
● Back-to-back，The perfect solution for dual-conveyor lines。
Machine dimensions (approx.)：TQ：1000mm x 1300mm x1600mm(L x W x H)。
TQ L：1300mm x 1500mm x1600mm(L x W x H)。
Min. substrate size： 50mm(X) x 50mm(Y)。
Max. substrate size：TQ： 250mm(X) x 400mm(Y)(3-stage conveyor)。
400mm(X) x 400mm(Y)(1-stage conveyor)。
TQ L：300mm(X) x 510mm(Y)(3-stage conveyor)。
600mm(X) x 510mm(Y)(1-stage conveyor)。
Maximum print area：TQ： 400mm(X)x 400mm(Y) (1-stage conveyor)。
TQ L：560mm(X)x 510mm(Y) (1-stage conveyor)。
Machine accuracy：>2.0Cmk@±12.5 microns(±6 sigma)。
Wet-printing accuracy：>2.0Cpk@±17 microns(±6 sigma)。
Shortest core cycle time (CCT)：DEK TQ：5秒，DEK TQ L：6.5秒。
