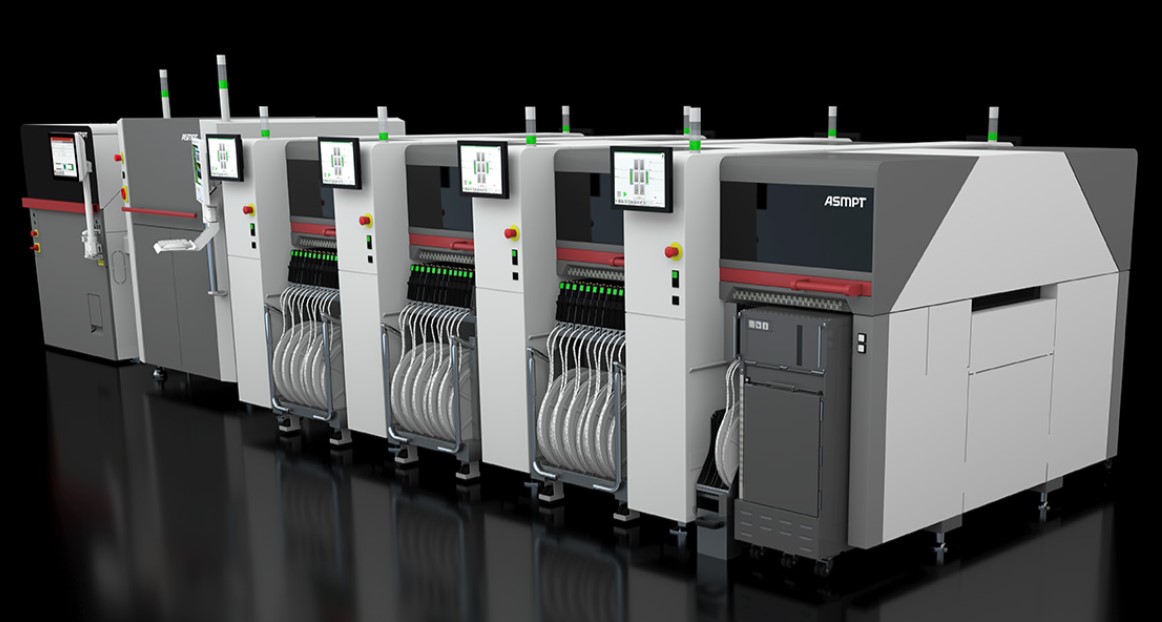

ASMPT SIPLACE TX High Speed Component Placement Machine
ASMPT SIPLACE TX
●SIPLACE TX The perfect machine for the SMART Factory
The smart factory needs smart machines: the SIPLACE TX is breaking all performance records with its new SIPLACE SpeedStar placement head and new SIPLACE SmartFeeder Xi.
●SMART PERFORMANCE
Maximum performance in a small footprint
Precise component feeding
SIPLACE SmartFeeder Xi
●3 Placement heads
SIPLACE SpeedStar：the new benchmark for components up to 8.2 mm x 8.2 mm
SIPLACE MultiStar：3 placement modes: Collect-andPlace, Pick-and-Place, and Mixed Mode
SIPLACE TwunStar：For components up to 200 mm × 125 mm
●SMART FLEXIBILITY
Wide component spectrum
Intelligent vision system
Flexible conveyors
Touchless/ low-force placement
●SMART CONNECTIVITY
Perfectly integrated into the smart factory
The smart factory needs smart machines: the SIPLACE TX is breaking all performance records with its new SIPLACE SpeedStar placement head and new SIPLACE SmartFeeder Xi.
●SMART PERFORMANCE
Maximum performance in a small footprint
Precise component feeding
SIPLACE SmartFeeder Xi
●3 Placement heads
SIPLACE SpeedStar：the new benchmark for components up to 8.2 mm x 8.2 mm
SIPLACE MultiStar：3 placement modes: Collect-andPlace, Pick-and-Place, and Mixed Mode
SIPLACE TwunStar：For components up to 200 mm × 125 mm
●SMART FLEXIBILITY
Wide component spectrum
Intelligent vision system
Flexible conveyors
Touchless/ low-force placement
●SMART CONNECTIVITY
Perfectly integrated into the smart factory
M/C Dimension：1000mm(外W) × 2230mm(D) × 1450mm(H) ±5%
Approx. Net Weigh：about 700 ± 30Kg
Placing Speed；96000cph((benchmark rating)
Placement heads：SIPLACE SpeedStar(CP20P2)、SIPLACE MultiStar(CPP)、SIPLACE TwinStar(TH)
Placement accuracy (3 σ)；CP20P2：25um、CPP：34um、TH：22um
Component spectrum；0.12mm X 0.12mm to 200mm X 125mm
PCB dimensions (L × W)：50mm X 45mm to 550mm X 260mm((dual lane)
50mm X 45mm to 550mm X 460mm(single lane mode)
Component feeding：Up to 80X8mm tape feeders、JEDEC trays
Typical power consumption：1.6KW((with vacuum pump)、1.2KW((without vacuum pump)
Compressed air consumption：120Nl/min(with vacuum pump)
Approx. Net Weigh：about 700 ± 30Kg
Placing Speed；96000cph((benchmark rating)
Placement heads：SIPLACE SpeedStar(CP20P2)、SIPLACE MultiStar(CPP)、SIPLACE TwinStar(TH)
Placement accuracy (3 σ)；CP20P2：25um、CPP：34um、TH：22um
Component spectrum；0.12mm X 0.12mm to 200mm X 125mm
PCB dimensions (L × W)：50mm X 45mm to 550mm X 260mm((dual lane)
50mm X 45mm to 550mm X 460mm(single lane mode)
Component feeding：Up to 80X8mm tape feeders、JEDEC trays
Typical power consumption：1.6KW((with vacuum pump)、1.2KW((without vacuum pump)
Compressed air consumption：120Nl/min(with vacuum pump)
