Pactech laser ball, fill the ball machine

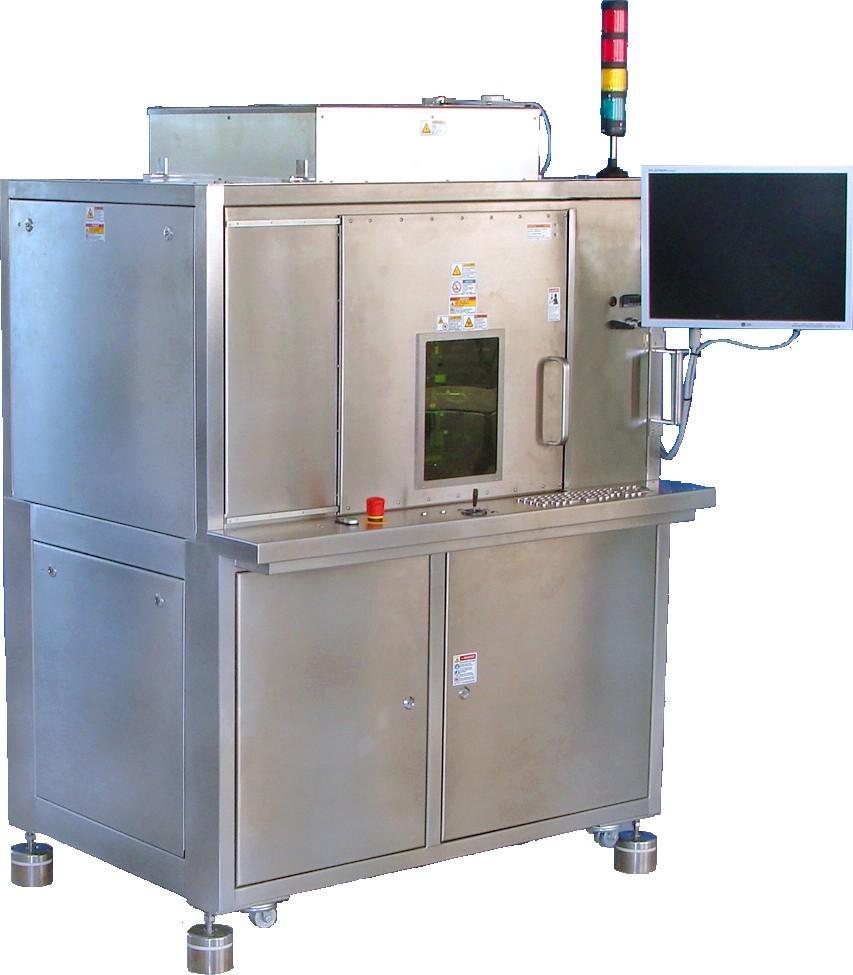

Pactech SB2-Jet
● With a solder ball storage system, a large number of solder balls (> 400k @ 400um) can be stored and filled with nitrogen to avoid oxidation.
● precision ball ball disc ball distribution function, accurate to provide the ball out of the ball.
● Welding parameters can be customized by customers, a variety of height, location, distance can be set.
● solder ball size 80um ~ 670um can be selected with any choice, can meet a variety of pad size welding.
● laser heating, nitrogen-driven, non-contact welding.
● No need to divide the moving distance to achieve high-speed welding, welding up to 6 points per second.
● laser light source fine-tuning system, optimize the working parameters of control.
● precision ball ball disc ball distribution function, accurate to provide the ball out of the ball.
● Welding parameters can be customized by customers, a variety of height, location, distance can be set.
● solder ball size 80um ~ 670um can be selected with any choice, can meet a variety of pad size welding.
● laser heating, nitrogen-driven, non-contact welding.
● No need to divide the moving distance to achieve high-speed welding, welding up to 6 points per second.
● laser light source fine-tuning system, optimize the working parameters of control.
● Dimensions: (length x width x height) Approx. 1250 x950 x 1750 (mm)
● Total weight: approx. 700 (kg)
● Electronically controlled specifications:
Input voltage (length x width x height) (mm) Single phase 230V +/- 10V (steady state no less than 220V)
Maximum power 20A (230V)
● air pressure specifications:
Pressure (bar / psi) max; 7/102
Flow (l / min) 126
● Nitrogen specifications:
Pressure (bar / psi) minimum; 2/29; maximum; 2.5 / 36
Flow rate (l / min) (required flow rate during operation) Max. 0.75
● Operating wavelength 1075 nm +/- 10 nm
● Laser power of 100 watts
● Dispersion rate <5 mrad (mrad)
● Operating temperature 0-40 ° C
● Relative humidity 10-95%
● Total weight: approx. 700 (kg)
● Electronically controlled specifications:
Input voltage (length x width x height) (mm) Single phase 230V +/- 10V (steady state no less than 220V)
Maximum power 20A (230V)
● air pressure specifications:
Pressure (bar / psi) max; 7/102
Flow (l / min) 126
● Nitrogen specifications:
Pressure (bar / psi) minimum; 2/29; maximum; 2.5 / 36
Flow rate (l / min) (required flow rate during operation) Max. 0.75
● Operating wavelength 1075 nm +/- 10 nm
● Laser power of 100 watts
● Dispersion rate <5 mrad (mrad)
● Operating temperature 0-40 ° C
● Relative humidity 10-95%
