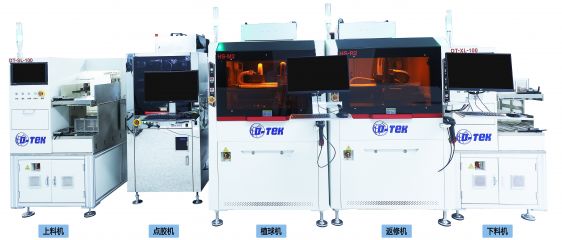

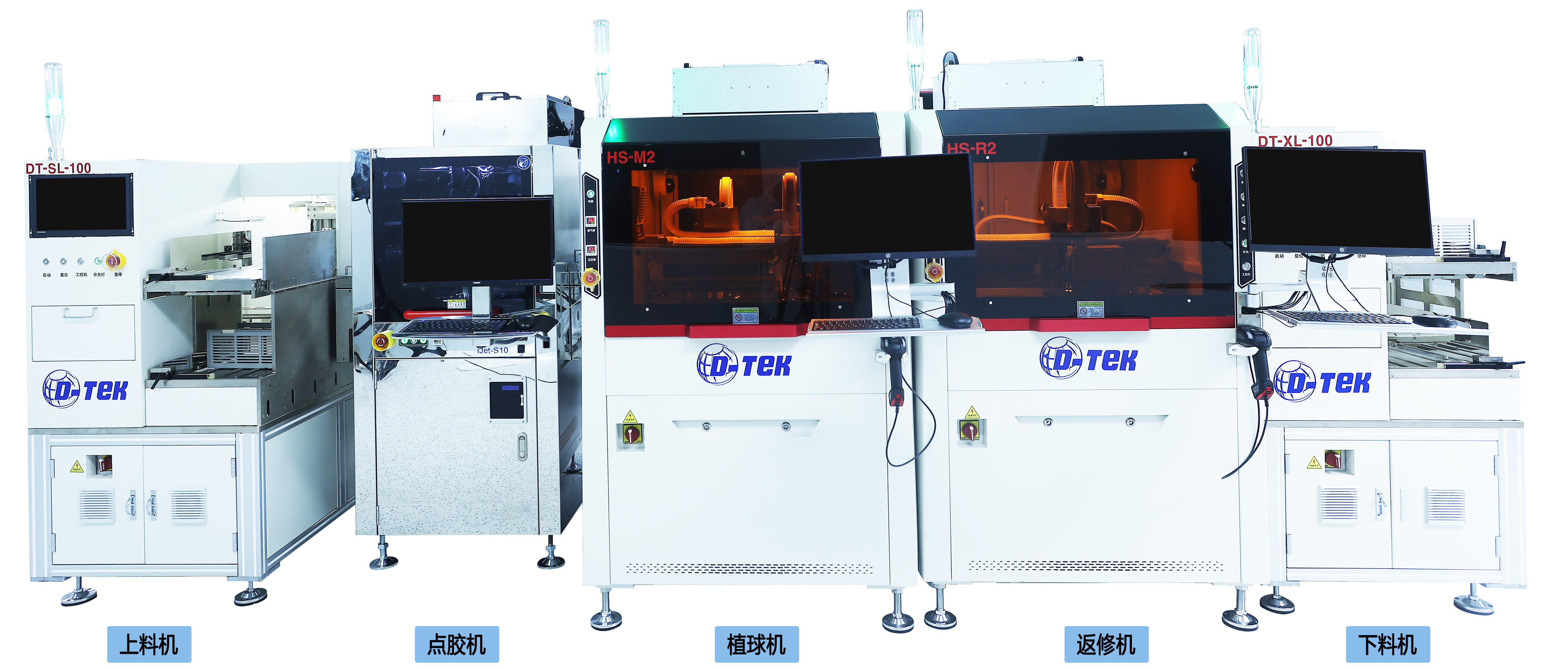

Fully automatic high-speed jet ball planting machine

Our company's ball planting machine is a globally innovative and innovative non-contact ball filling equipment that adopts Flux and ball spraying modes. Currently, the mainstream ball planting machines in the market require mold opening for positioning and transferring tin balls, and each model requires different molds. Our equipment does not require expensive mold costs, saving mold opening time and early verification cycles. The product line changes quickly, the use is flexible, and the equipment operation is simple.
Product features
● It is possible to plant balls on substrates with already installed components.
Changing the spacing between substrate pads does not require replacing the Boundhead, resulting in high flexibility.
● Fully automatic detection of post implantation effects (ball leakage, missing balls, foreign objects)
The whole machine has ESD anti-static function.
The track can be lifted and lowered to achieve the function of pressing plates, equipped with a vacuum adsorption platform to solve the problem of product warping.
The XY axis movement of the equipment adopts linear motor and optical ruler positioning, with high positioning accuracy and fast response speed. It is equipped with a bottom camera and an up looking CCD camera for calibration processing, ensuring automatic correction after each time boundhead or nozzle change.
