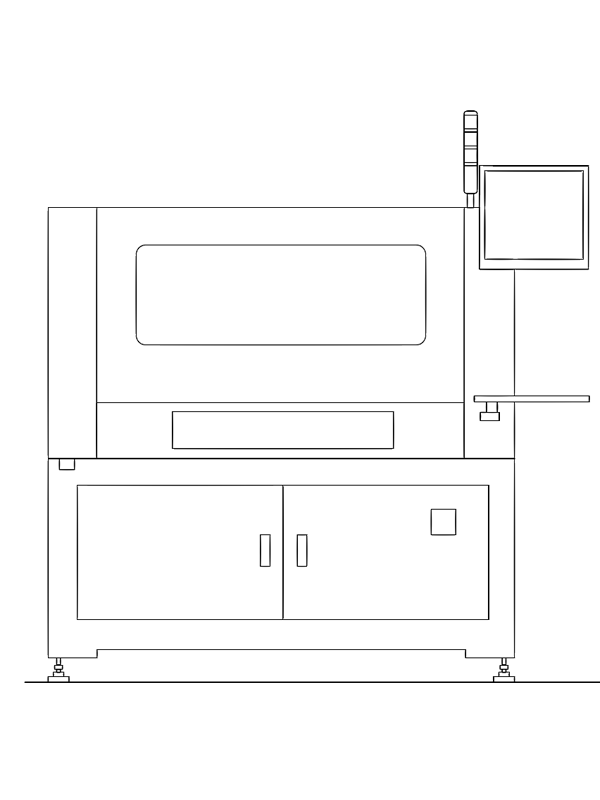

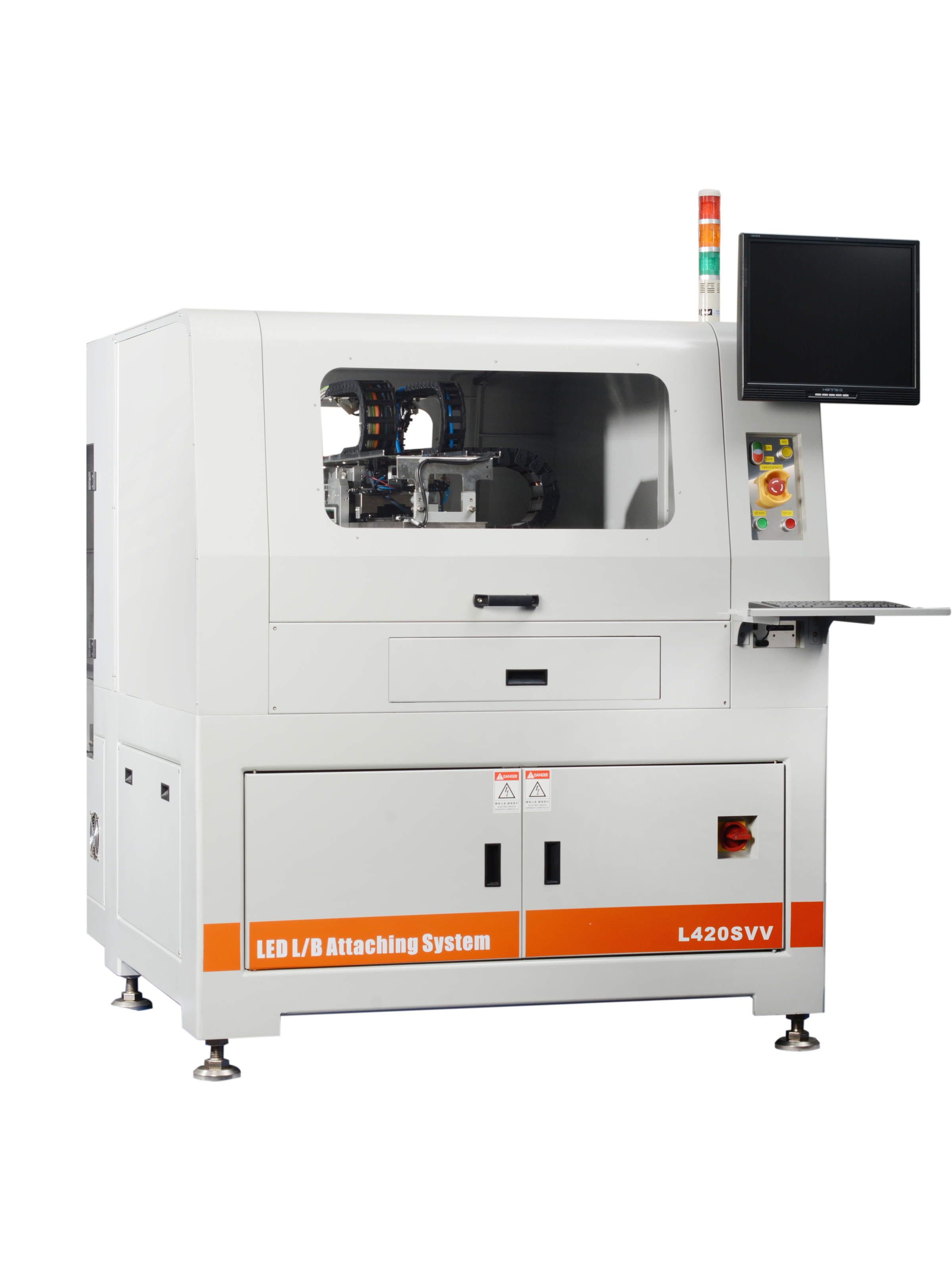

Full vision automatic board machine L series for Light bar
Gravity L-420
●The new process revolution
● Improve production capacity and yield
● Reduce plant and equipment costs
● High-resolution linear motor drive system
● Dual light dual vision positioning (optional)
● With PCB classification function
● Improve production capacity and yield
● Reduce plant and equipment costs
● High-resolution linear motor drive system
● Dual light dual vision positioning (optional)
● With PCB classification function
physical dimension:
S & M type-1420 mm (W) x 2300 mm (D) x 1600 mm (H)
L & XL type-1640mm (W) x 2300mm (D) x 1600mm (H)
Weight: ≒ 1250Kg ~ 1500Kg
Board direction: left to right or right to left
Accuracy: ± 35 ~ 50um
PCB size: according to the machine model
Carrier size: according to the machine model
Power supply: 220VAC / 3 Phase / 50 ~ 60 Hz / 25A
Pneumatic requirements: 6 ~ 8 Bars
Communication: SMEMA
S & M type-1420 mm (W) x 2300 mm (D) x 1600 mm (H)
L & XL type-1640mm (W) x 2300mm (D) x 1600mm (H)
Weight: ≒ 1250Kg ~ 1500Kg
Board direction: left to right or right to left
Accuracy: ± 35 ~ 50um
PCB size: according to the machine model
Carrier size: according to the machine model
Power supply: 220VAC / 3 Phase / 50 ~ 60 Hz / 25A
Pneumatic requirements: 6 ~ 8 Bars
Communication: SMEMA
